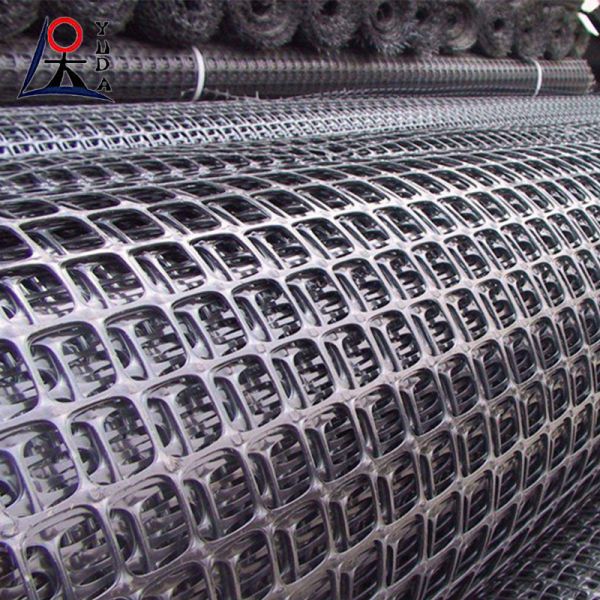

Polyester Biaxial Geogrid Road Construction Geogrid Fiber Mesh Geogrid

Name: Polyester Biaxial Geogrid Road Construction Geogrid Fiber Mesh Geogrid
Brand: YUDA
Price: 1 USD

Quality Polyester Biaxial Geogrid Road Construction Geogrid Fiber Mesh Geogrid for sale

Brand Name : YUDA

Model Number : Plastic flat net

Place of Origin : CHINA

MOQ : 100 Square Meter

Price : Reconsideration

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200000 Square Meters/ day

Delivery Time : 3-10 day

Packaging Details : Customized according to buyer's requirements

product name : plastic net

Keys words : Geogrid Manufacturers retaining wall Plastic 30kn parking geogrid driveway for rod

Material : HDPE

Hole shape : Diamon, square, hexagonal etc.

Room Space Selection : Support

Combination : suit

Environment Of Use : -20~50℃

Charactor : sdurable,high strength,corrosion resist

Contact Now

Polyester Biaxial Geogrid Road Construction Geogrid Fiber Mesh Geogrid

Polyester geogrid is a new kind of earthwork base material; which is used to strength the road surface and roadbed. Composing of high-strength polyester yarns, coatedd with an inorganic sizing agent.

Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life ot pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.

Our company has established advanced laboratories for internal quality control and built strict quality control system of whole processes from raw materials testing, production process, to final products testing.

Have the best equipments and our biaxial geogrids are up to six meters wide.

Application

1. Reinforcement of soft soil subgrades of various roads such as highways, railways and municipal roads can effectively improve the strength of subgrades and delay road reflection cracks.

2. Reinforcement and isolation of dams and river channels in water conservancy projects strengthens the soft soil foundation, enhances its protective capacity, and improves the bearing capacity and stability of the foundation.

3. Used for reinforcement of embankment slopes and retaining walls to enhance overall strength.

Tensile strength(MD/CD)	15-50 kn
Width	1-6 m
Length	50-100m
Material	PP
Port	Qingdao
Delivery	2-20 days
Packing	Nude packing or as customers' requests

Item	TGSG 15-15	TGSG 20-20	TGSG 25-25	TGSG 30-30	TGSG 40-40	TGSG 45-45	TGSG 50-50
Vertical Tensile Strength (KN/m) ≥	15	20	25	30	40	45	50
Horizontal Tensile Strength (KN/m)	15	20	25	30	40	45	50
Vertical elongation ration (%) ≤	13
Horizontal elongation ration (%) ≤	13
Vertical stretching force at 2% elongation(KN/m) ≥	5	7	9	10	14	16	17.5
Horizontal stretching force at 2% elongation(KN/m) ≥	5	7	9	10	14	16	17.5
Vertical stretching force at 5% elongation(KN/m) ≥	7	14	17	21	28	32	35
Horizontal stretching force at 2% elongation(KN/m) ≥	7	14	17	21	28	32	35
Length (m)	50
Width (m)	1-6
